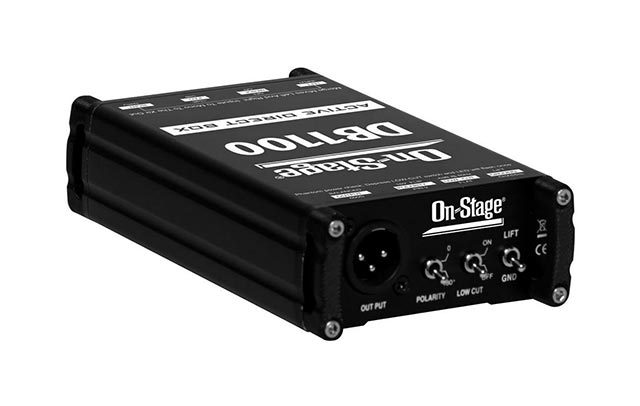

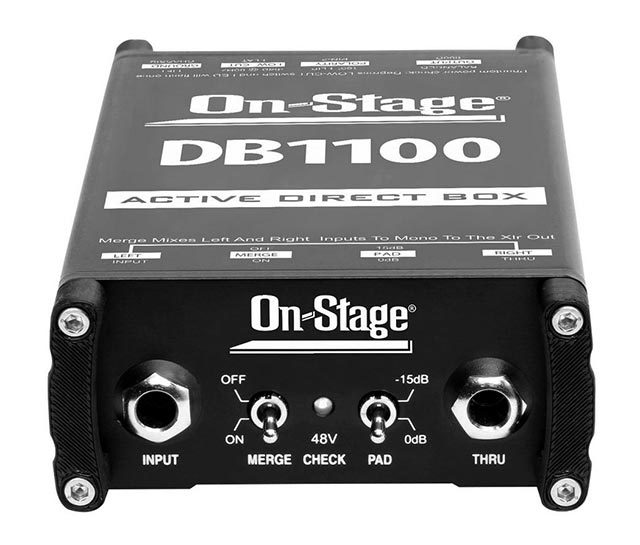

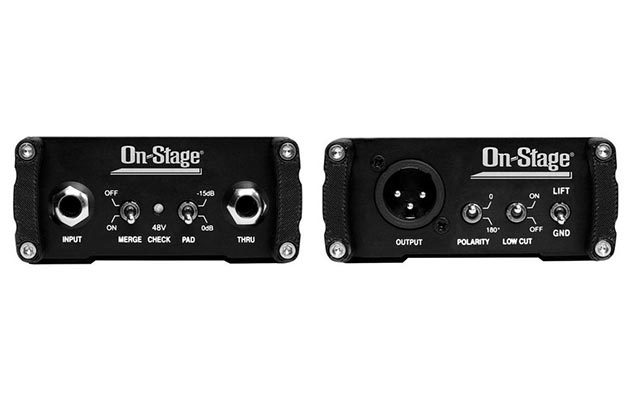

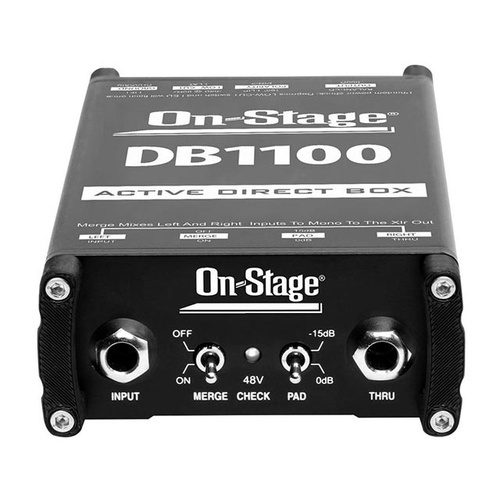

On Stage Phantom Powered Active Stereo Direct Box

The DB1100 Active Direct Box transforms any high-impedance source into a low-impedance (XLR) signal ready to be sent long distances to a mixing board or recording console.

Its active design features isolated inputs, a 15dB pad switch, ground lift switch, low cut switch, and polarity switch. The DB1100 also features a Merge function, allowing a left/right stereo signal to be input through the In and Thru jacks, thus outputting a summed mono signal. Great for any device or instrument, especially keyboards.

Phantom Powered - No batteries or adapters needed
Merge switch (Stereo-to-Mono Summing)
Ground lift switch
15dB pad switch
Polarity switch
Low cut switch
Rugged metal construction
Input Resistance: 220K Ohms
Frequency Response: 10-40k
Dimensions (in): 6 x 3-1/2 x 1-1/2
Weight: 0.7 lbs.
