AER Switchmaster III Multi-function Amplifier Footswitch
for Footswitch compatible AER Amplifiers
$179.95
Recommended Retail Price
SKU: AERFOOTSWITCH
The AER Switchmaster 3 is a multi-function footswitch designed for compatible AER acoustic guitar amplifiers (such as select models in the AER lineup supporting remote channel, effect, or mute switching)
| Model | efx on/off | switch channels | mute on/off | switch int/ext. efx | dist. on/off | solo, ensemble | harmonics on/off |
|---|---|---|---|---|---|---|---|
| AC 3 | C1* | A1* | |||||
| Alpha | A2 | C1 | |||||
| Compact 60 | A2 | C1 | |||||
| Compact mobile | A2 | C1 | |||||
| Compact XL | A2 | C1 | |||||
| Amp one/two | A3 | A3 | |||||
| Compact Classic | A2 | C1 | A1 | C1* | |||
| Domino 2 | A2 | C1 | A1 | C1* | |||
| Cheeky d. | A1 | A1 | A1 | A1 | |||
| Basic Performer | A2 | A1 | |||||
| Bass Cube 2 | A1 | A1 | |||||
| Domino 3 | A2 | ||||||
| Head one | A2 | A1 | A1 | A2 | |||
| *see manual | |||||||

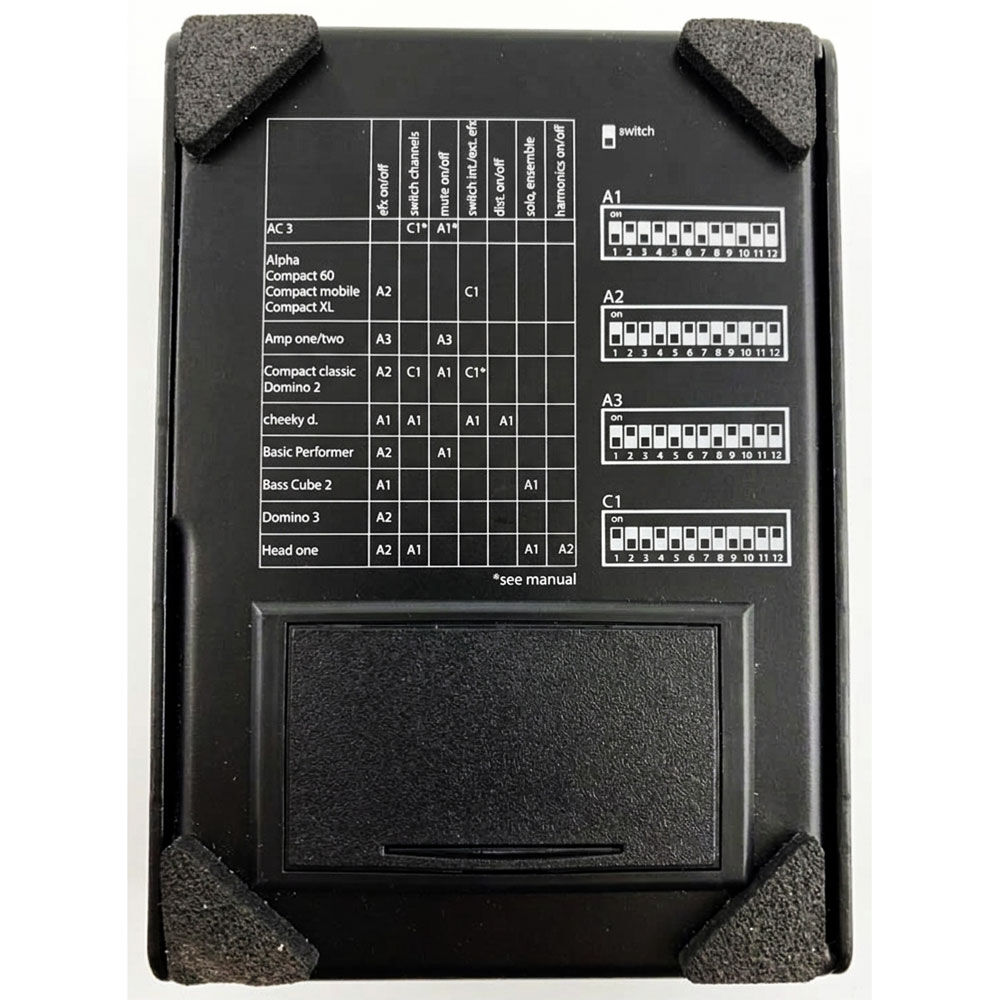

DIP Switch Configuration Reference
All DIP switch banks contain 12 switches numbered 1 through 12.
- A1: Switch 1 is ON (up). Switches 2-12 are OFF (down).
- A2: Switch 2 is ON (up). Switches 1 and 3-12 are OFF (down).
- A3: Switch 3 is ON (up). Switches 1-2 and 4-12 are OFF (down).
- C1: Switch 1 is ON (up). Switches 2-12 are OFF (down).
(AERFOOTSWITCH)
| SKU | AERFOOTSWITCH |
| Brand | AER |
| Type | Foot Switches |
