Artec EDGE-BL Preamp Blender System with Piezo & Magnetic Soundhole Pickups

The Dream of Acoustopia

Recommended Retail Price

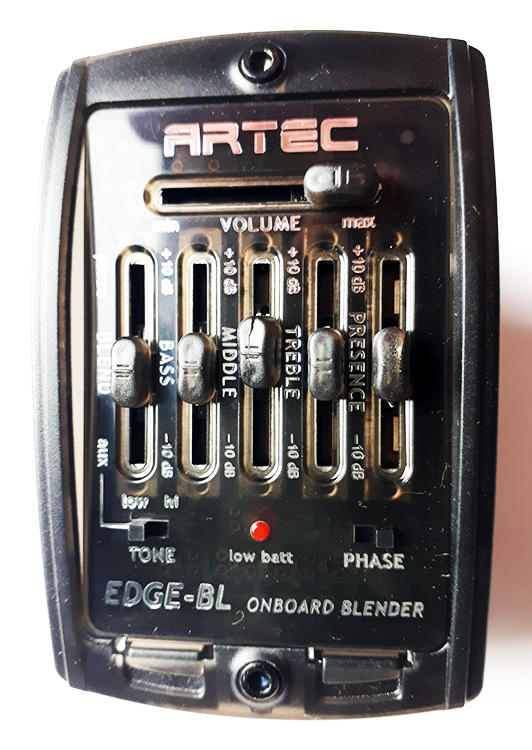

The EDGE-BL has a Blender EQ and basic controls of Bass, Middle, Treble and Presence. Through the AUX-INPUT jack at the bottom a Condenser Microphone or Soundhole Pickup can be connected. This pack contains both an undersaddle piezo pickup and a magnetic soundhole pickup.

Also the sound from another source can be plugged in. The Blender can control the mixing balance of the piezo sound from 4-band EQ, and the sound from AUX-Input. The Phase switch on the panel is applied to piezo sound only, therefore this can give the additional choices about Plus-Mixing or Minus-Mixing of piezo pickup sound and AUX sound. This enables you to create great tone variations.


  • 4-Band EQ - Bass, Middle, Treble & Presence Controls
  • Master Volume output level
  • Blend the mix ratio between Piezo and AUX
  • Phase Reverse Switch to reduce feedback
  • Tone Switch creates a High cut of AUX sound to make soft tones
  • Low Battery check LED
  • Tuner Switch
  • Chromatic tuner LEDs - Flat, OK & Sharp

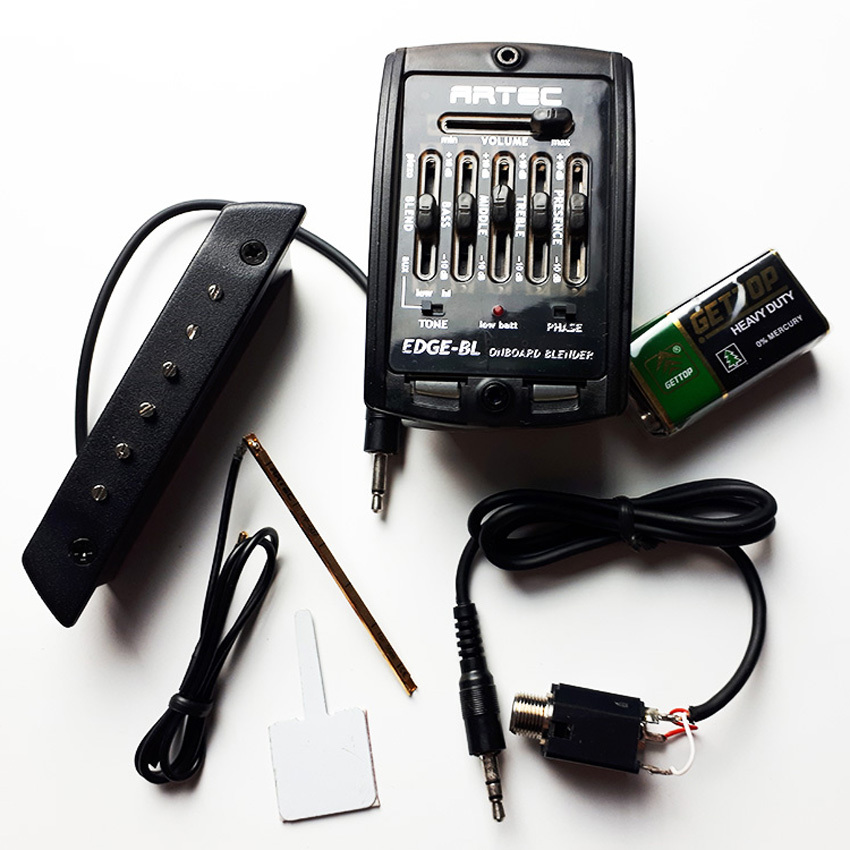

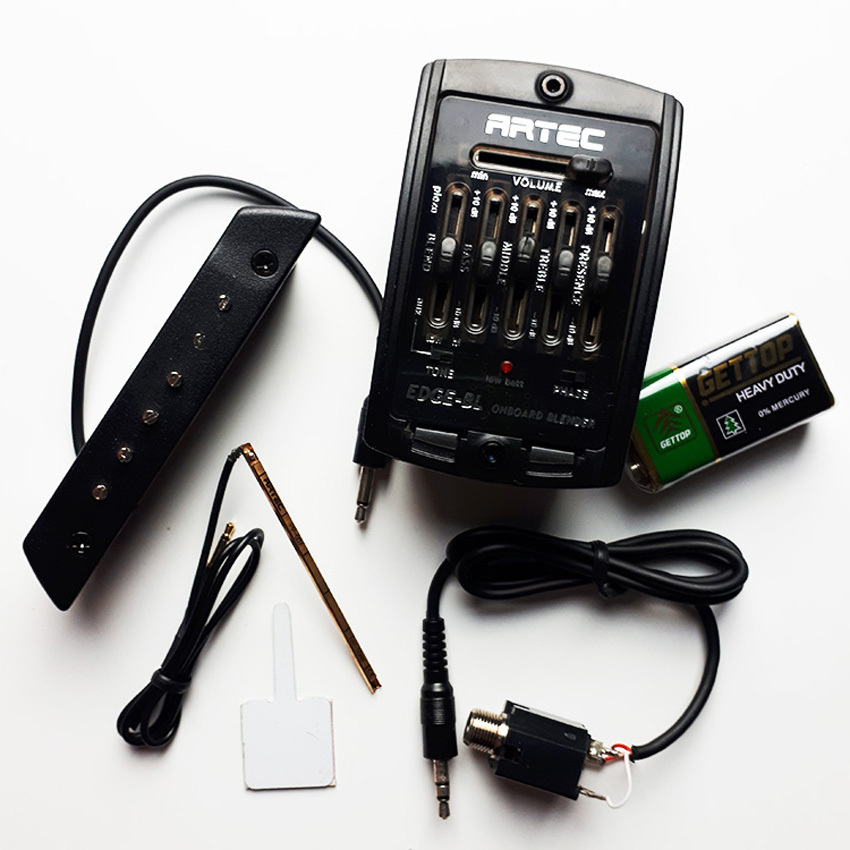

Pack includes:

  • Artec EDGE-BL Pre-amp with On-board Blender System
  • Artec Piezo pickup
  • Artec MSP-50 Magnetic Soundhole Pickup
  • Input jack
  • 9V Battery;


  • Power Supply: 9V Alkaline Battery
  • Battery Life: Over 1000 hours (without head set)
  • Bass control range: ±10 dB
  • Middle control range: ±10 dB
  • Treble control range: ±10 dB
  • Low Battery check at 5.0 V
  • Piezo pickup Input Jack: 2.5 mm Mono Jack
  • Magnetic pickup Input Jack: 3.5 mm Mono Jack


Brand Artec
TypeAcoustic Guitar Preamps
TypeAcoustic Pickup Systems
TypeSoundhole Pickup Systems
