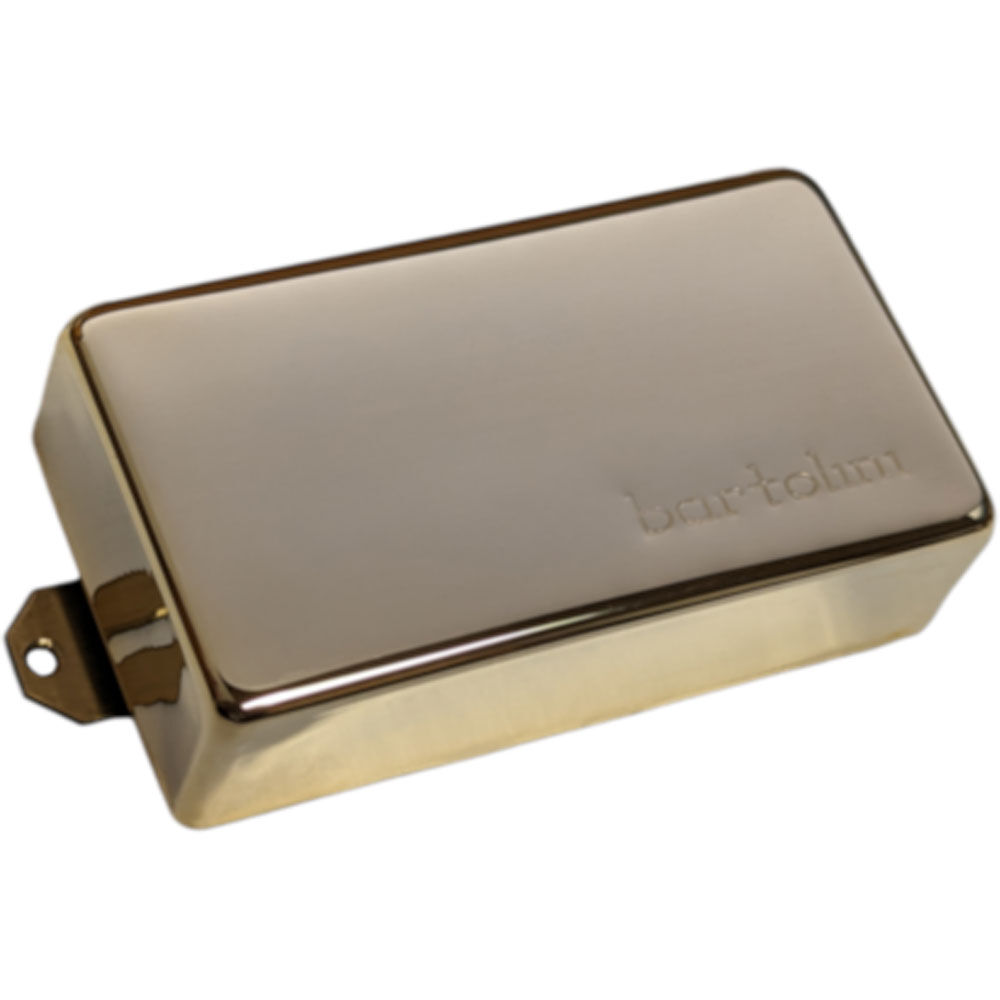

Bartolini PBF55-GS Jazz/Rock Dual Coil Electric Guitar Neck Pickup in Gold

This is the pickup to drive your overdrive. High output and definition for controlled distortion. Ring-mount.

The PBF-55 and PBF-77D Rock pickups are high-output models that make sure clarity and smoothness aren’t lost, even at high volume levels. The PBF-77D uses both ceramic and Alnico magnets along with 2 types of steel to project an offset magnetic field for maximum humbucking, output, and focus. PBF Humbuckers are fully sealed and shielded making them sweat-proof, quiet if you touch them, and immune invisible noise from stage lights and studio power supplies.

The shielded 4-conductor cable is ready for coil splitting and series or parallel humbucker wiring. PBF Humbuckers come in black, nickel, or gold in balanced versions for neck (rhythm) and bridge (treble). Black mounting screws are included (#4-40 x 1”) for rectangular versions (Bartolini #1 Shell shape).

PBF Humbuckers are also now available in b-one traditional rounded-corner shape for pickguard and body-mount installations with your standard #3-48 screws. Mounting hardware is not included, be sure to order what you need for your particular guitar.

 SPECIFICATIONS:

Bartolini PBF55-GS Jazz/Rock Dual Coil - Neck Position

Technical Details:

Type: PBF Humbucker To Suit: Ring-Mount Guitar Humbucker Shapes DC Resistance: ~5.7K Ohms Resonant Frequency: ~3.8KHz Sensing Width: 2.01" [51mm] Max Coil Structure: Dual Parallel Humbucking Cable Type: 4-Conductor Cable with shield and bare drain Magnetic Circuit: 2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets.

NEED A DIFFERENT CONFIGURATION?
To view all Bartolini Bass Pickups CLICK HERE. To check availability and RRP, quote the model number you are interested in to the friendly staff at Pro Music Sales - Contact 1300 880 278 or sales@promusicaustralia.com
