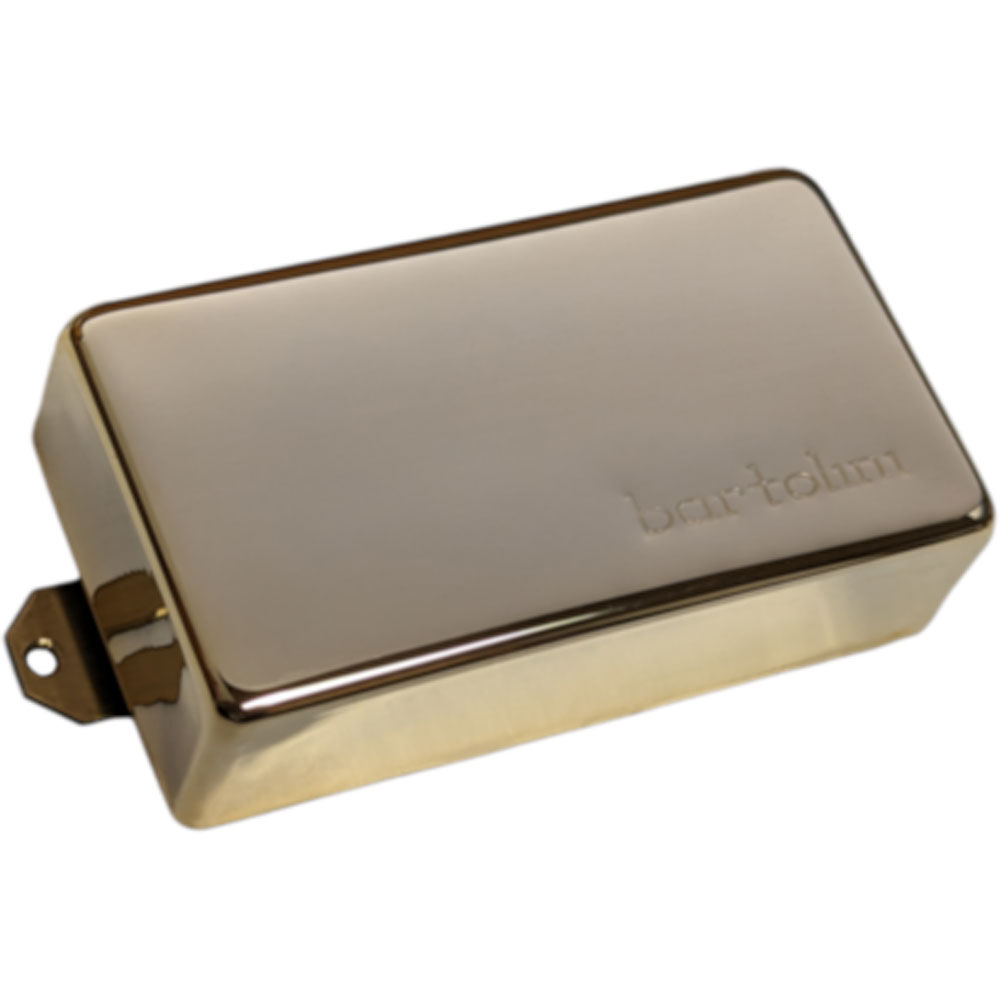

Bartolini PBF57-GS Jazz Dual Coil Electric Guitar Bridge Pickup in Gold

Get definition and clarity with this Jazz voiced quiet ring-mounted humbucker

The PBF-55 and PBF-57 Jazz pickups bring out a more rounded, softer tone that excels at smoothing out the high register of many guitars. PBF Humbuckers are fully sealed and shielded making them sweat-proof, quiet if you touch them, and immune invisible noise from stage lights and studio power supplies. The shielded 4-conductor cable is ready for coil splitting and series or parallel humbucker wiring.

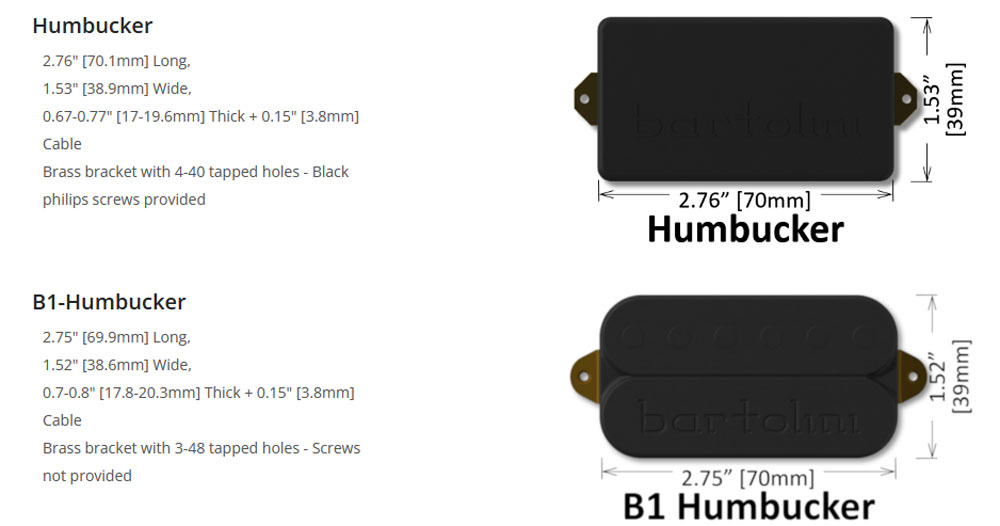

PBF Humbuckers come in black, nickel, or gold in balanced versions for neck (rhythm) and bridge (treble). Black mounting screws are included (#4-40 x 1”) for rectangular versions (Bartolini #1 Shell shape). PBF Humbuckers are also now available in b-one traditional rounded-corner shape for pickguard and body-mount installations with your standard #3-48 screws. Mounting hardware is not included be sure to order what you need for your particular guitar.

 SPECIFICATIONS:

Bartolini PBF57-GS Jazz Dual Coil - Bridge Position

Technical Details:

Type: PBF Humbucker To Suit: Ring-Mount Guitar Humbucker Shapes DC Resistance: ~6.2K Ohms Resonant Frequency: ~3.5KHz Sensing Width: 2.01" [51mm] Max Coil Structure: Dual Parallel Humbucking Cable Type: 4-Conductor Cable with shield and bare drain Magnetic Circuit: 2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture. Neck coil South and Bridge coil North

NEED A DIFFERENT CONFIGURATION?
To view all Bartolini Bass Pickups CLICK HERE. To check availability and RRP, quote the model number you are interested in to the friendly staff at Pro Music Sales - Contact 1300 880 278 or sales@promusicaustralia.com
