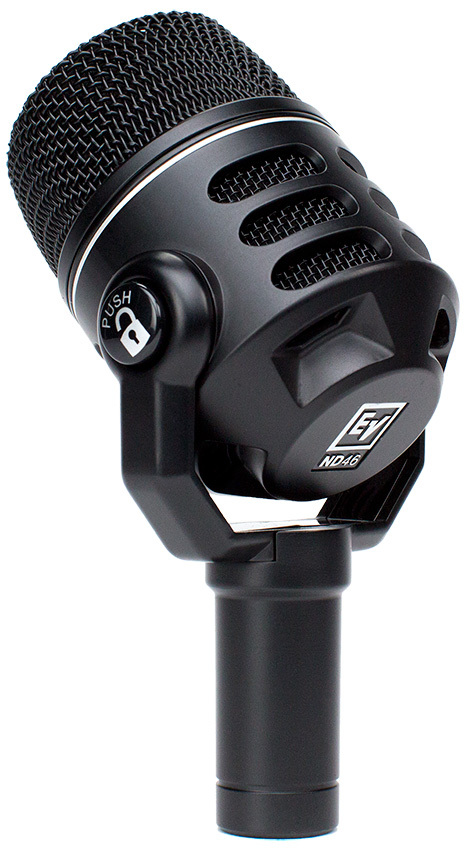

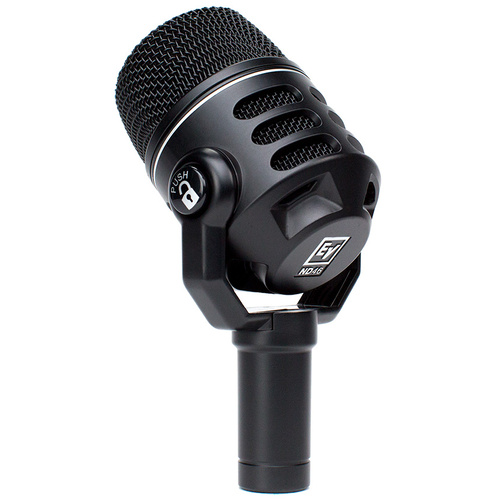

Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone

Includes Gig Bag, Stand Clip & Thread Adaptor

Recommended Retail Price


The Electro-Voice ND46 is a robust, high-performancedynamic supercardioid instrument microphone.

Designed for capturing a wide variety instrument sounds, the ND46 capsule is precisely tuned to deliver a lively and balanced sound, as well as excellent isolation from the sound of other nearby instruments.

The ND46 dynamic capsule contains a large Mylar diaphragm which delivers a rich and detailed frequency response by combining its large surface area for tonal balance with its low-mass high-velocity material for exceptionally fast transient response.

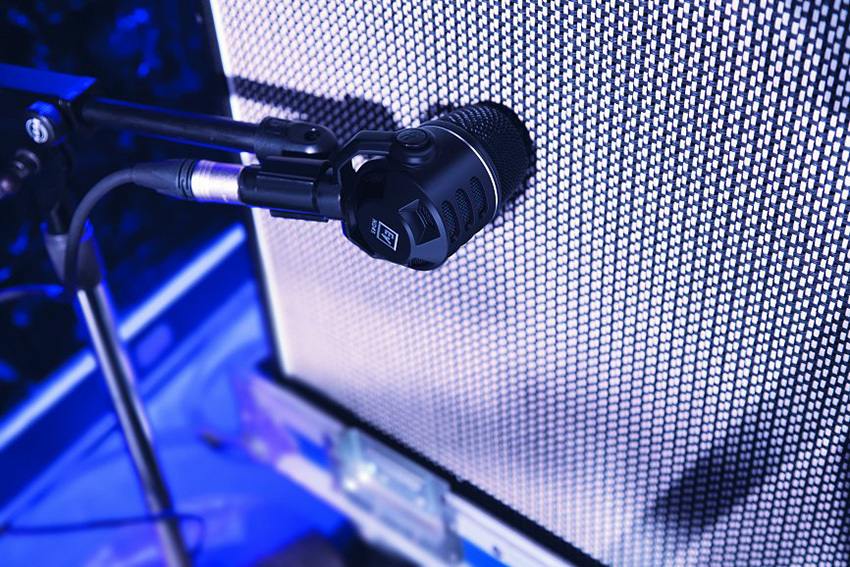

The ND46 locking pivoting head makes mic placement easy and precise. Achieve ideal mic placement by pushing its button, pivoting the head into position, then releasing the button to lock the head's position.

The ND46 capsule uses a humbucking coil that attenuates AC hum and electromagnetic interference. ND dynamic mics can be used with confidence near speaker cabinets and EMF generating equipment racks.

The ND46 Memraflex grille is made of a durable tight-mesh grille wire that withstands extraordinarily-rough treatment. Your microphone remains protected and looking good gig-after-gig, year-after-year.

For additional protection, the ND46 capsule contains a hydrophobic cloth membrane which prevents moistureand debris from reaching the diaphragm.The ND46 also features an innovative capsule shock-mount system consisting of a 4-point suspension around the circumference of the capsule combined with a tuned pneumatic pump at the capsule base, offering superior handling noise reduction to eliminate mechanical vibrations and noise in the mix.


  • Weight Net: 10.9oz (309g)
  • Height: 5.67" (144.1mm)
  • Audio Frequency Response: 70 - 18,000
  • Case Material: Die cast zinc
  • Connector: Type 3-pin XLR
  • Diameter (Max): 2.2" (56mm)
  • Element: Dynamic
  • Family: ND Series
  • Finish: Black polyurethane paint
  • Impedance, Low-Z balanced: 350?
  • Maximum SPL: > 140dB
  • Mic Type: Instrument
  • Open Circuit Voltage: 2.4mV/Pascal
  • Polar Pattern: Supercardioid
  • Power Requirement: Passive
  • Accessories Included: (1) Gig Bag, (1) stand clip and (1) Euro thread adapter


UPC/EAN F.01U.314.726
Brand Electro-Voice
TypeDrums/Percussion Microphones
TypeAcoustic Strings Microphones
TypeGuitar/Bass Amp Microphones
TypeRecording Microphones
StyleDynamic Microphones
