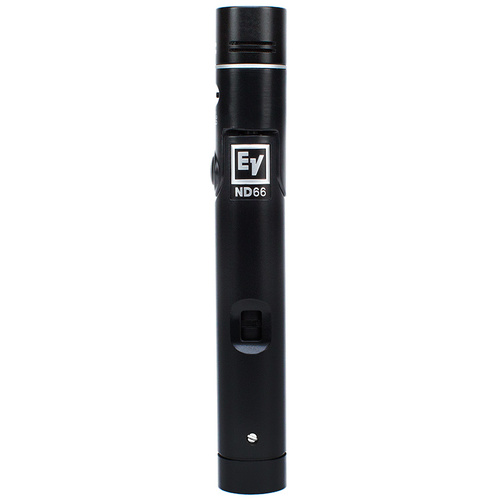

Electro-Voice ND66 Condenser Cardioid Instrument Microphone

Includes Gig Bag, Stand Clip & Thread Adaptor

$509.00
Recommended Retail Price

SKU: EV-ND66

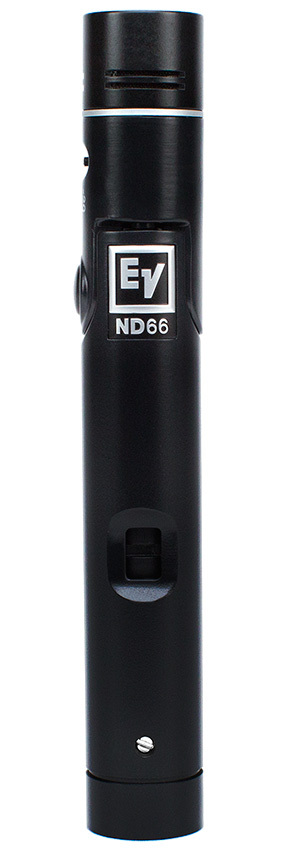

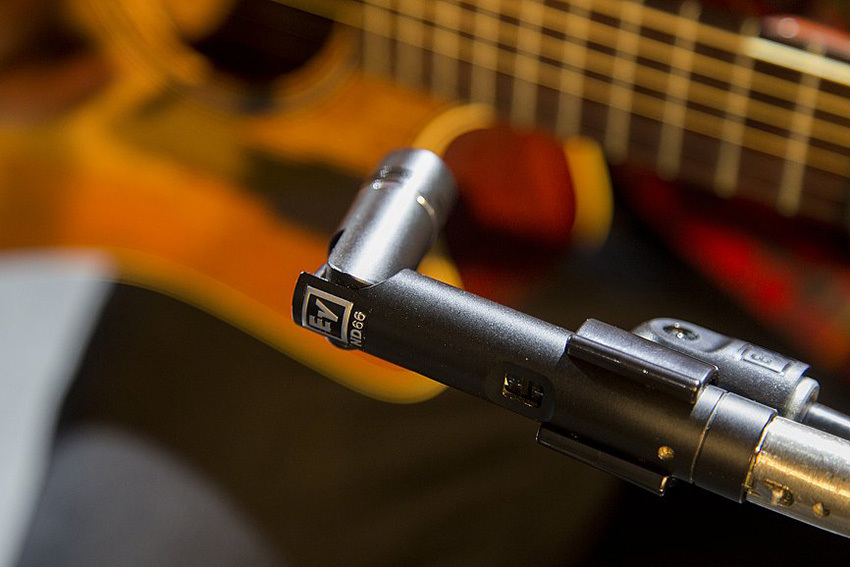

The Electro-Voice ND66 is a robust, high-performance small diaphragm condenser instrument microphone.

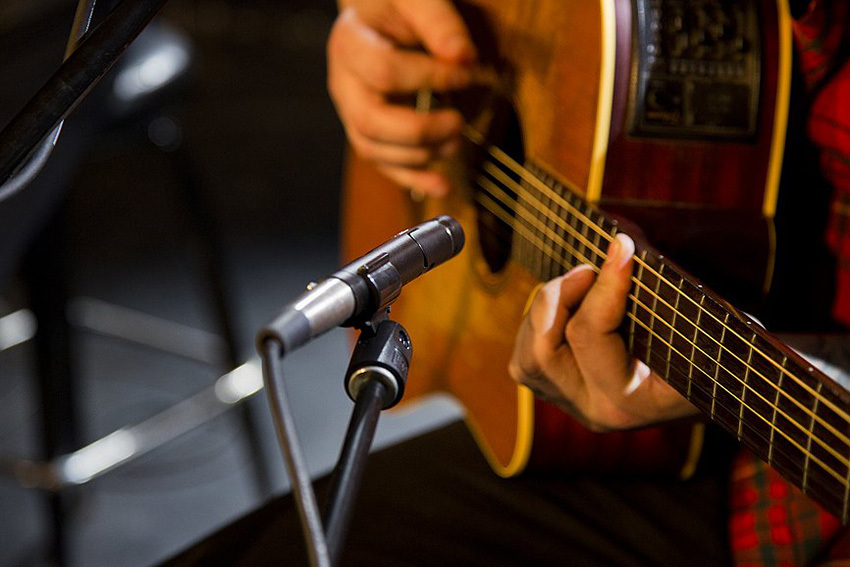

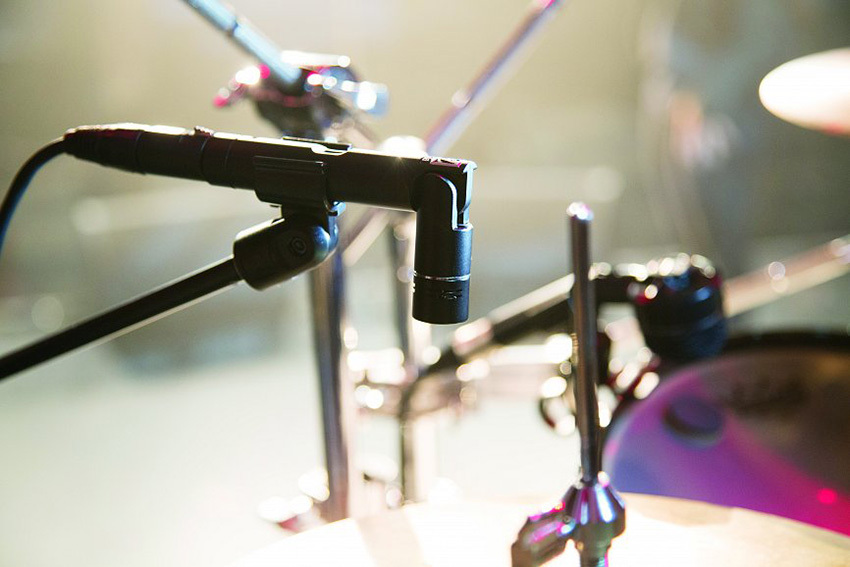

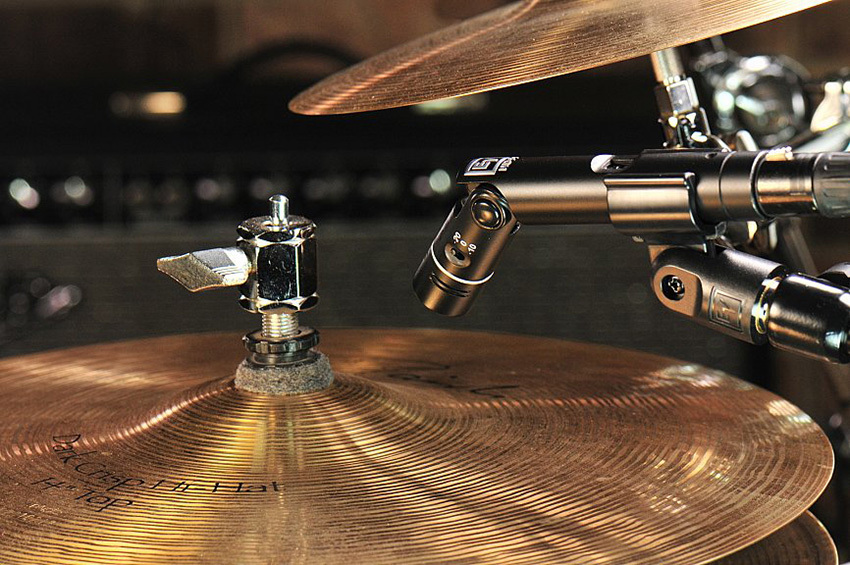

The ND66 contains a self-biased small diaphragm condenser element which is vividly responsive to the complex dynamic nature of percussive and stringed instruments, delivering a clean, crisp and detailed sound.

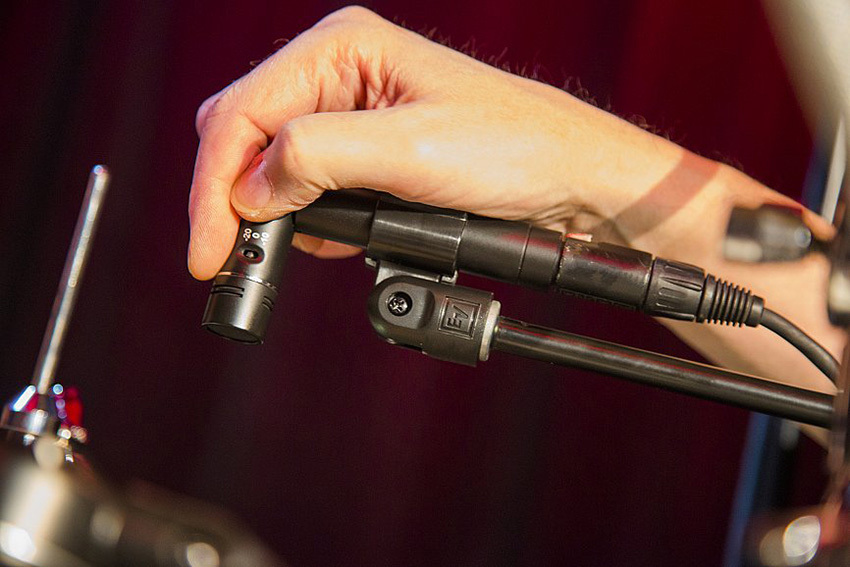

With the ND66 exclusive locking rotating head, achieve ideal mic placement in virtually any situation by merely pushing a button, rotating the head into position, then releasing the button to lock the head's position.

ND66 contains selectable -10 and -20dB pads which provide the necessary gain reduction to prevent the mic element from overloading when micing very loud or high-transient sound sources.

ND66 contains selectable high pass filters which are strategically chosen at 75Hz and 150Hz to eliminate bothersome low frequencies from the signal path.

Specifications:

  • Weight Net: 6.31oz (179g)
  • Height: 5.63" (143mm)
  • Audio Frequency Response: 50 - 20,000
  • Case Material: Die cast zinc
  • Connector: Type 3-pin XLR
  • Diameter (Max): 0.83" (21mm)
  • Element: Condenser
  • Family: ND Series
  • Finish: Black polyurethane paint
  • Impedance, Low-Z balanced: 200?
  • Maximum SPL: 146dB
  • Mic Type: Instrument
  • Open Circuit Voltage: 10mV/Pascal
  • Polar Pattern: Cardioid
  • Power Requirement: 48 VDC Phantom
  • Accessories Included: (1) Gig Bag, (1) stand clip and (1) Euro thread adapter

(EV-ND66)

SKU EV-ND66
Barcode # F.01U.314.727
Brand Electro-Voice
TypeDrums/Percussion Microphones
TypeAcoustic Strings Microphones
TypeGuitar/Bass Amp Microphones
TypeRecording Microphones
StyleCondenser Microphones
