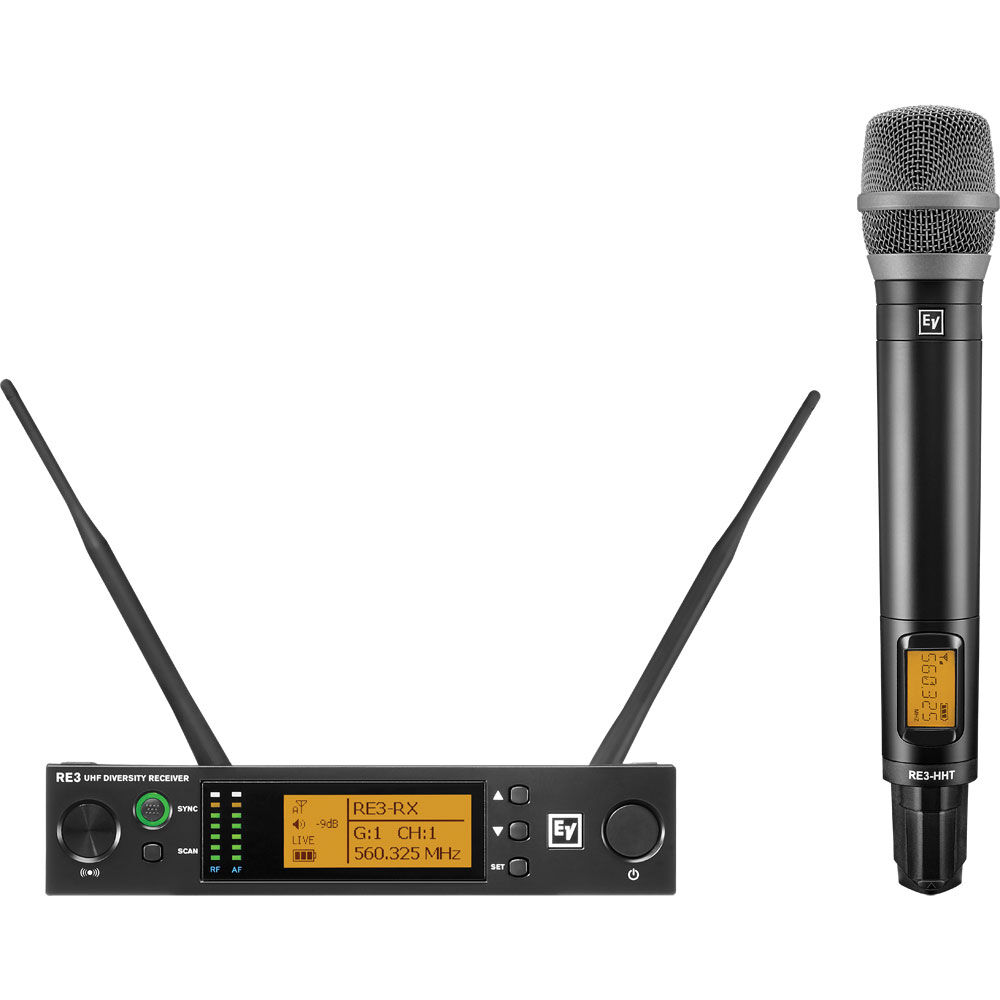

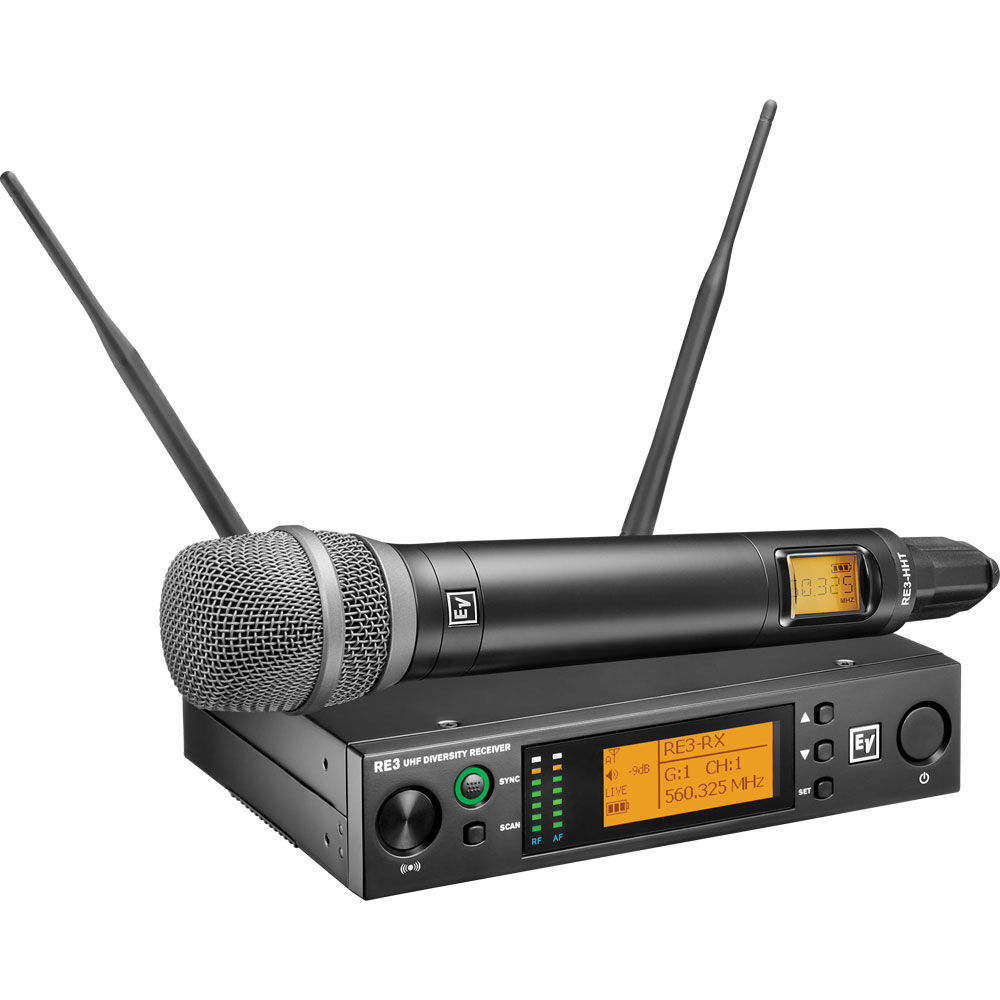

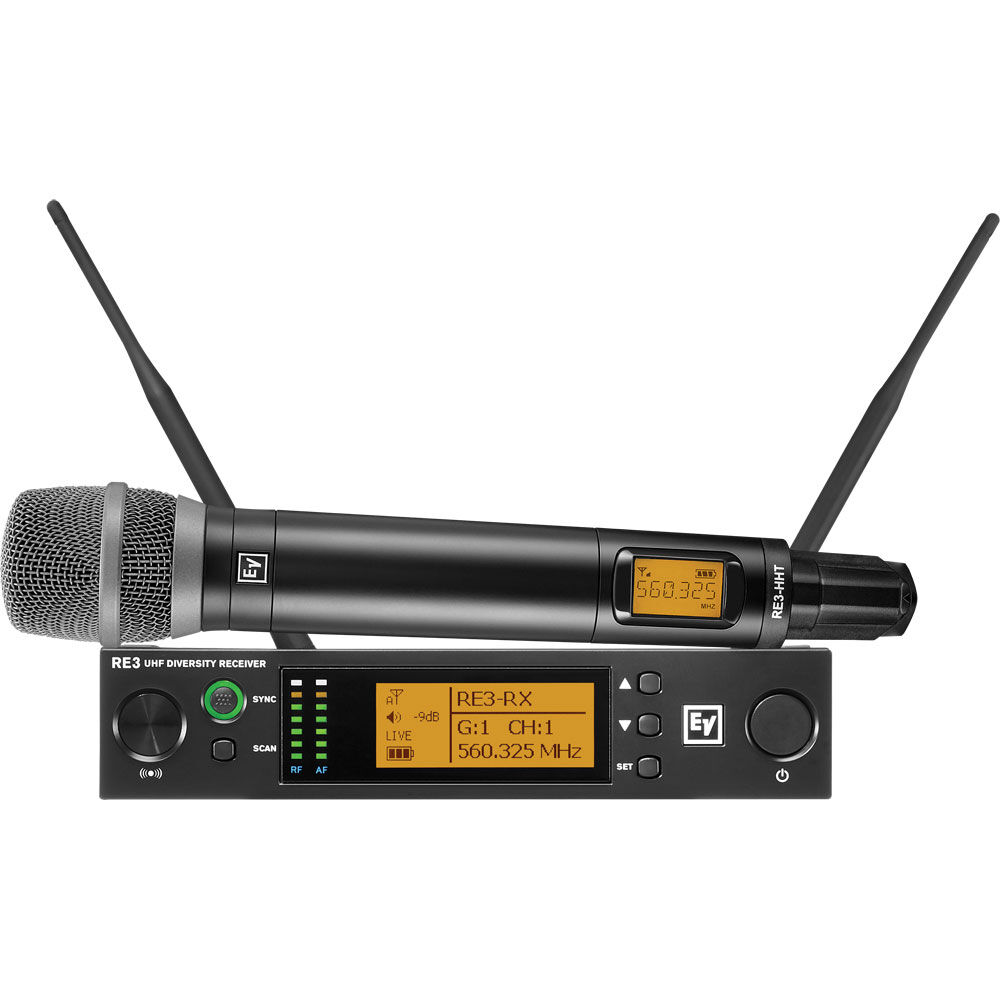

Electro-Voice RE3 Handheld Wireless System with RE520 Condenser Super-Cardioid Microphone

Handheld UHF wireless set featuring RE520 condenser supercardioid microphone head for vocal performance and presentations. The RE520’s sound is detailed, full, and vivid, with a tight and clear low end, natural and present midrange, and an exceptionally-detailed high end. The supercardioid pattern provides excellent acoustic isolation.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

FEATURES:

• Rich, detailed, and full-bodied vocal sound
• Shock-mounted condenser capsule
• Selectable low and high transmitter output power
• Half rack space diversity receiver with rack mount
• Frequency scanning selects open frequencies
• Sync function links transmitter to receiver for easy system setup

COMPONENTS INCLUDED:

• RE3-RX Diversity Receiver
  Diversity reception minimizes dropouts
  Frequency scanning for selecting open frequencies
  Sync function links transmitter to receiver for easy setup
  Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
  Easy-to-read LCD display

• RE3-HHT Handheld Transmitter
  Robust metal body
  Sync function for easy frequency setup
  Selectable low and high output power (band specific)
  Up to 36 MHz tuning bandwidth (band specific)
  Common threaded coupling allows microphone head interchangeable

• RE520-RC3 Wireless Head with RE520 Capsule
  Thread-on microphone head for Electro-Voice and other brand's wireless handheld transmitters
  Premium condenser element delivers a highlydetailed, rich, and full bodied sound
  Supercardioid polar pattern provides excellent acoustic isolation and feedback control
  Multi-stage pop filter minimizes breath blasts and plosives
  Selectable high-pass filter reduces undesirable low frequency content when engaged

• Other Components
  Microphone stand adapter
  Two receiver antennas
  Universal power supply
  Two AA batteries
  Receiver rack mounting hardware

SPECIFICATIONS:

• Band Name: 5H
• Band Limits (MHz): 560 - 596
• Tuning Bandwidth: 36 MHz
• Selectable Frequencies: 1440
• Transmit Output Power (mW): 10 and 50
• Coverage: Global
• Transmitter Type: Handheld
• Mic. Element Type: Self-biased condenser
• Microphone Type: Thread-on Head
• Polar Pattern: Supercardioid
• Battery Type: 2 x AA
• Receiver Type: Antenna Diversity
• Receiver Size: 1/2 Rack Space
• Frequency Response: 40 Hz - 20 kHz
• Receiver Output Levels: Mic and Line
• Receiver Output Connectors: XLR and 1/4" TS
