On Stage Crank-Up Subwoofer Attachment Shaft with M20 Thread

Never Go On Stage Without Us!

Recommended Retail Price

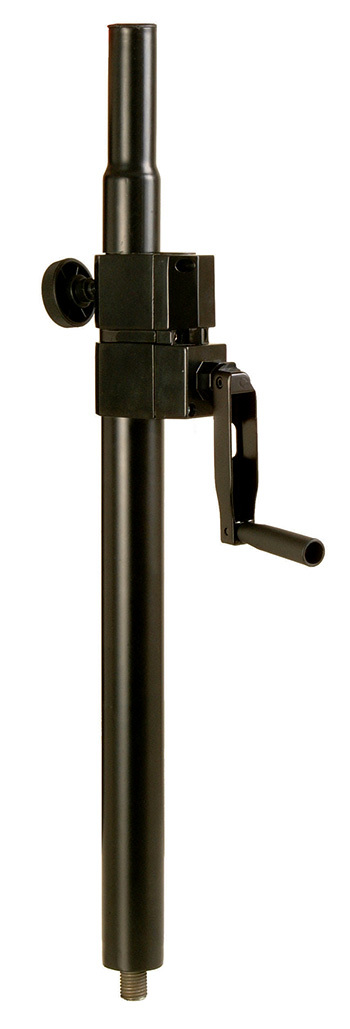

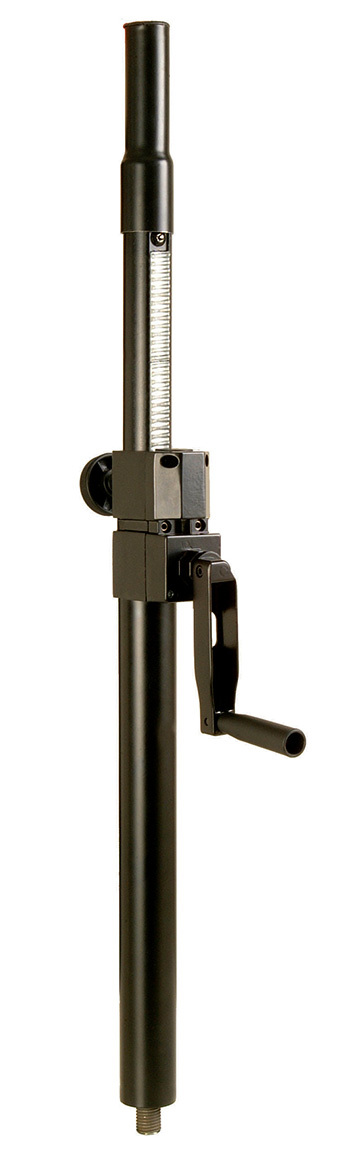

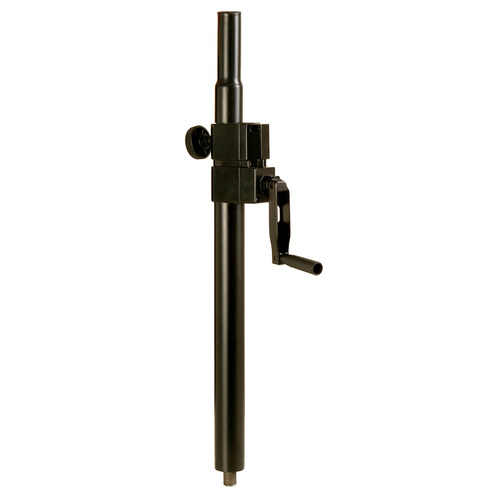

The OSSS7747 is designed for use with the new breed of compact high powered subwoofers that utilize a M20 x 2.5 threaded pole mount.

The threaded mount improves on the typical cup design by eliminating wobble and guaranteeing a perpendicular alignment between subwoofer and pole. The system effectively eliminates the perceptible lean often associated with subwoofer mounted satellite setups and is a space saving alternative to tripod speaker stands.

Height adjustment is easy thanks to the OSSS7747's folding hand crank.
The pole's rack and pinion components are constructed of diecast zinc and allow for a 12" travel. Turning the hand crank adjusts the OSSS7747 from 30" to 42" with a warning label indicating maximum height.

Overall height range is determined by the size of the supporting subwoofer. In addition to the folding hand crank, the adjustment system features a friction safety knob and stabilizer ring.
The upper shaft is constructed of heavy-duty 1.6mm extruded aluminium and fits speaker cabinets with 1-3/8" pole mount inserts. An optional OSSSA2 adapter allows the use of 1.5" inserts.

The OSSS7747 is designed to support a properly balanced speaker of up to 75 lbs.


UPC/EAN 659814142910
Brand On Stage
Shipping Weight 3.5400kg
Shipping Width 0.160m
Shipping Height 0.080m
Shipping Length 1.050m
Shipping Cubic 0.013600000m3
TypeSubwoofer Shafts
