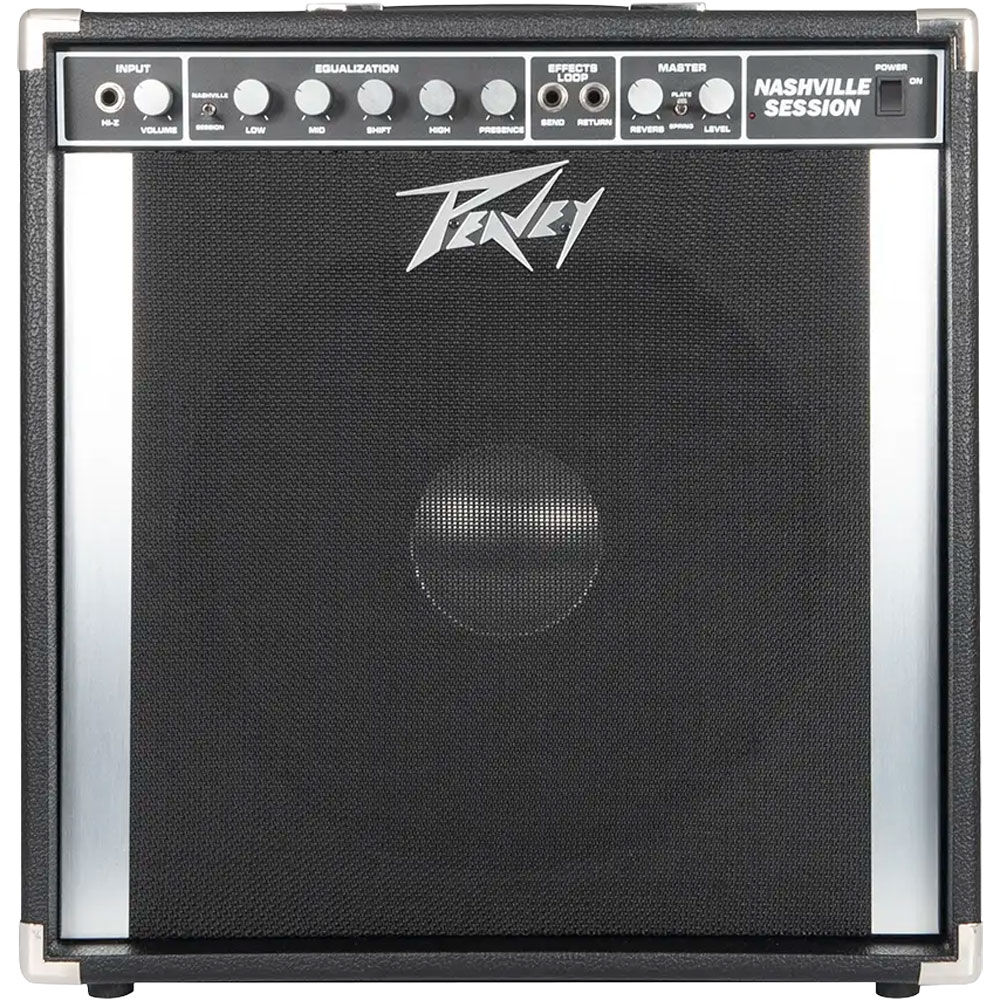

Peavey "Nashville Session 115" Pedal Steel Guitar Amp Combo 200-Watt (1x15")

The Nashville-Session is everything that it needs to be for the working pedal steel guitarist. Aside from pedal steel applications, the Nashville-Session is also a great multi-instrumentalist amp, whether it be for fiddle, mandolin, banjo, accordion, or electric kazoo.

From the new 100% analog non-reactive high-Z input and classic hard-switched analog preamp circuitry (miniaturized for the lowest possible noise) with top shelf components throughout, to the mighty 200W (rms) power section driving an all-new Peavey-proprietary 15" Celestian speaker with aluminum-capped Neodymium drivers. The look and size of its unique cabinet design is based on classic Peavey models, however, the materials and construction have been optimized for low weight and best possible resonance and interaction with the new speakers, per model.

While the 115 is the more classic and familiar-sounding variant of the two, the 112 is already making more headway for "flat" applications and it has also proven to be a fantastic high-powered pedal platform for guitar. Beyond that, it is also the simplest and best engine that is currently available for "real" sounding FRFR applications on stage. This type of functionality is further enhanced by the inclusion of a pre-reverb footswitchable effects loop/return, master volume, onboard 9VDC supply, and full-range XLR direct interface.

There is also a 1/4" speaker jack so that you can quickly and easily swap to the external speaker or your choice….or use no speaker at all. To add the sparkle and sheen on top, we have also included our all-new homebrewed reverb with both PLATE and SPRING settings, to mimic the most revered echoes of our illustrious past and finally top the old ProFex verbs like only Peavey can. Once you "pick one up" you will not want to put it down.

For decades, Peavey has been listening to you, and we hope that you truly enjoy your new amp! Peavey would also like to extend a special note of thanks for the invaluable input from industry legends like Bill Ferguson, Robert Randolph, Steve Hinson, and Buck Reid; without whom, this amp could not have happened.

FEATURES:

• All new lightweight combos for pedal steel and other amplified instruments
• Like having a vintage Nashville 112/400 and a Session®/LTD 400 combined into one amp
• 200W (rms) into 4 Ohms with revamped DDT speaker protection
• Weighs: 12.25 kg (27 lbs)
• 15" Celestion speaker with aluminum-capped Neodymium drivers voiced for modern pedal steel and clean guitar applications
• 15mm Poplar cabinet construction for light weight with superior strength
• Extremely high impedance input buffer circuitry
• High quality film caps throughout the preamp
• Miniaturized circuitry for superior noise performance
• "Session®" setting has Gain with active Low/High EQ with passive Mid/Shift/Presence
• "Nashville™" setting has Gain with active 3-band EQ with active Mid Shift/Presence
• Front loaded footswitchable buffered Effects Loop
• All new footswitchable reverb section with Plate and Spring options
• Rear mounted 9VDC aux power supply
• Full range Headphones and XLR Direct Interface with Level control
• Preamp Out and Power Amp In jacks @ 1V sensitivity

SPECIFICATIONS:

Power Amplifier Section

• Rated Power & Load:
  200W (rms) into 4 Ohms (with DDT compression)
  110W (rms) into 8 Ohms (with DDT compression)
  55W (rms) into 16 Ohms (with DDT compression)
  2.7 Ohms minimum load - 2 Ohm operation not recommended

• Frequency Response: +0, -3 dB, 20 Hz to 30 kHz @ 200W (rms), 4 Ohms

• Total Harmonic Distortion:
  1% THD+N @ 200W (rms), 1 kHz, 4 Ohms
  0.003% THD+N @ <100W (rms), 1 kHz, 4 Ohms

• DDT Dynamic Range: Greater than 20 dB

• DDT Maximum THD:
  <0.5% THD+N f or 6 dB overload
  <1% THD+N f or 20 dB overload

• Hum & Noise: Greater than 112 dB below rated power (A-weighted)

• Power Consumption: 60W at 1/8th rated output power, 50/60 Hz, 100-120 VAC

• Preamp Hi-Z Input:
  Impedance: >10 Meg Ohms
  Nominal Input Level: 40mV (rms)
  Maximum Input Level before clipping: 1.9V (rms)

• Effects Loop Send and Return:
  Send Load Impedance: >1k Ohms
  Nominal Input/Output Level: 0.5V RMS
  Return Input Impedance: 1M Ohms

• Preamp Output/Power Amp Input Loop:
  Preamp Output Load Impedance: >1k Ohms
  Nominal Input/Output Level: 0.75V (rms)
  Power Amp Input Impedance: 1M Ohms

• Equalization (Nashville):
  Low: +/-15dB @ 45Hz, shelving
  Mid: +/-15dB @ Mid Shift frequency, boost/cut
  Mid Shift: 150Hz to 1.5kHz
  High: +/-15dB @ 6kHz
  Presence: +/-15dB @ 10kHz, shelving

• Equalization (Session):
  Low: +/-20dB @ 50Hz
  Mid: -15dB @ Mid Shift frequency, cut only
  Mid Shift: Passive 50 - 2kHz; Dependent on Low/High settings
  High: +/-15dB @ 2kHz
  Presence: +15dB @ 8kHz

• External Footswitch Functions (use Peavey #03620960, 2-button w/LEDs): Effects Loop (ring) & Reverb defeat (tip)

• Dimensions (H x W x D) 21.7" x 20.2" x 11"

• Weight: 12.25 kg (27 lbs)
